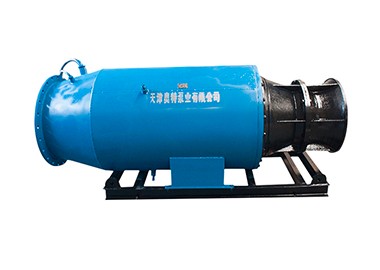

HORIZONTAL AXIAL PLOW PUMP
The Type QZB series is a submersible pump with non-clogging and non-stringing two-channel impeller in pot design for vertical wet-pit or dry-pit installation and universal use.
Size Range::
Applications: agricultural irrigation;water conservancy, urban water supply;drainage and sewage treatment;power plants;salt factories;farms for transporting recycled water;metallurgy;chemical and other
impeller angle | Flow(Q) | Head(m) | Speed(r/min) | Power(kw) | Efficency(%) | impeller(mm) | ||
m3/h | l/s | shaft | motor | |||||
-4° | 1370 1760 2050 | 380 489 571 | 9.44 7.00 4.35 | 980 | 52.4 43.9 32.3 | 55 | 70.0 79.6 78.5 | 450 |
-2° | 1720 2010 2250 | 479 559 625 | 8.20 6.43 4.90 | 54.0 45.8 42.2 | 74.5 80.0 73.5 | |||
0° | 2099 2160 2510 | 583 600 695 | 7.00 6.30 3.90 | 52.0 47.3 36.0 | 79.9 81.2 77.0 | |||
+2° | 2340 2560 2660 | 650 711 741 | 6.60 5.60 4.67 | 54.3 48.6 43.3 | 65(75) | 81.5 82.0 81.5 | ||
+4° | 2700 2858 | 750 794 | 5.60 4.40 | 51.5 45.1 | 83.0 79.0 |
500QZB-70
